SH2-M: Roland SH-2 MIDI Interface

135,00

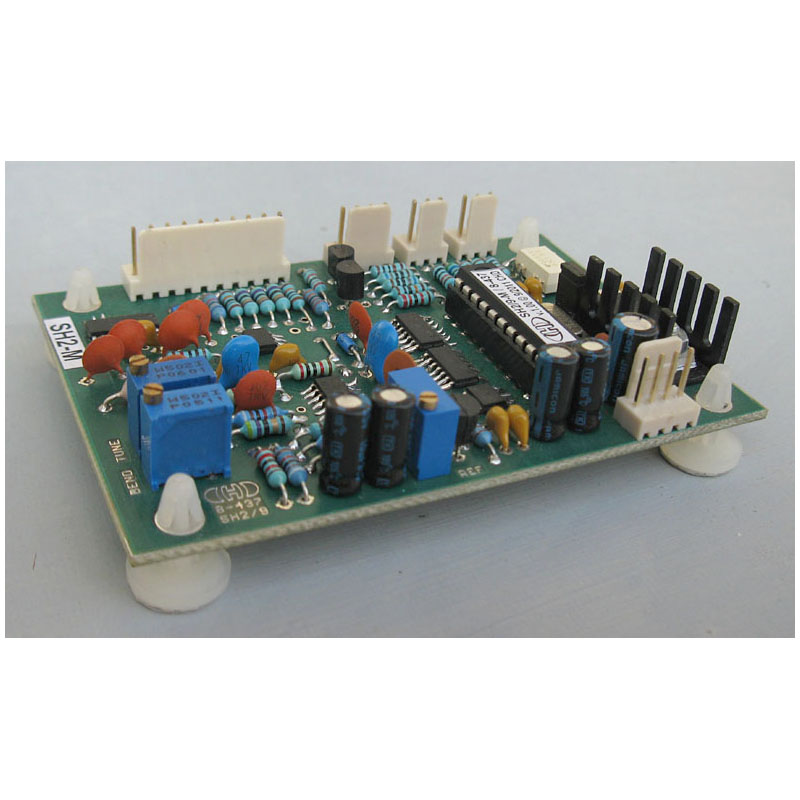

SH2-M is MIDI kit for Roland SH-2 synthesizer. It controls BENDER, VCOs, VCF and VCA circuits of the instrument. Additional LFO for VCOs control.

SKU: SH2-M Category:

Description

Main Features | Demo | Installation | Documents & SW Support | FAQ & Troubleshooting


Main Features |

  • The interface works in one direction only – it only receives MIDI data. Instrument’s keyboard, knobs, sliders and switches are not transmitted as a MIDI data.
  • MIDI Thru function (no MIDI Thru-box is necessary).
  • Controls the Roland’s VCOs, VCF, VCA and BENDER circuits directly from MIDI. The instrument’s tone parameters (control elements on panel) are not MIDI controllable.
  • The instrument’s keyboard (VCOs) is controlled only manually or only by MIDI Notes – not both ways simultaneously.
  • Additional LFO for VCOs control is embedded.
  • Easy user control of the interface parameters via MIDI CCs (as well as SysEx for experts):
    » 49 MIDI Notes (4 octaves) range, Velocity sensitive (VCF and VCA control)
    » Transpose function (over whole range of MIDI Notes)
    » Modulation – CC #1 (for additional LFO)
    » Volume – CC #7 and Expression – CC #11 (for VCA control)
    » Hold pedal – CC #64 (works with MIDI Notes)
    » Legato pedal – CC #68 (tone change without envelope re-trigger)
    » Aftertouch (used for instrument’s VCOs, VCF and VCA modulation, adjustable range)
    » Pitch bend (replaces instrument’s BENDER lever)
    » Local On/Off function – CC #122 (turns the interface on/off)
    » User defineable optical indication of the interface status
    » User selectable MIDI Channel for communication
  • 24 internal memory presets to store the interface user settings (the instrument’s tone parameters cannot be stored).
  • Original features of the instrument are not changed and the instrument can be used the same way as before the interface installation.
  • Installation without extensive modification of the instrument circuits.

The interface recognizes MIDI commands:

  • Note On/Off (inc. Velocity)
  • Channel Aftertouch
  • Program Change
  • Pitch Bend
  • Standard CCs (Modulation, Volume, Expression, Hold, Legato, ASO, ANO, RAC, Local Off/On)
  • Own CCs (# 40-57, 119)
  • Common System Reset
  • System Exclusive Messages

Demo |

Usage of MIDI Note’s Velocity to VCF and VCA control:

Usage of additional LFO for octave echo effect creation:


Installation |

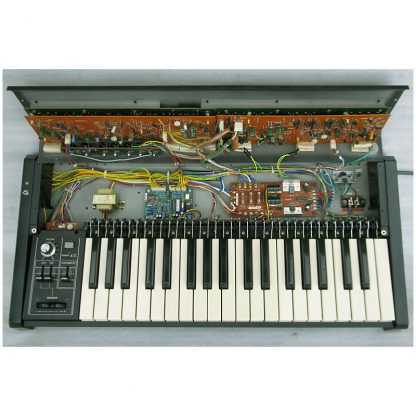

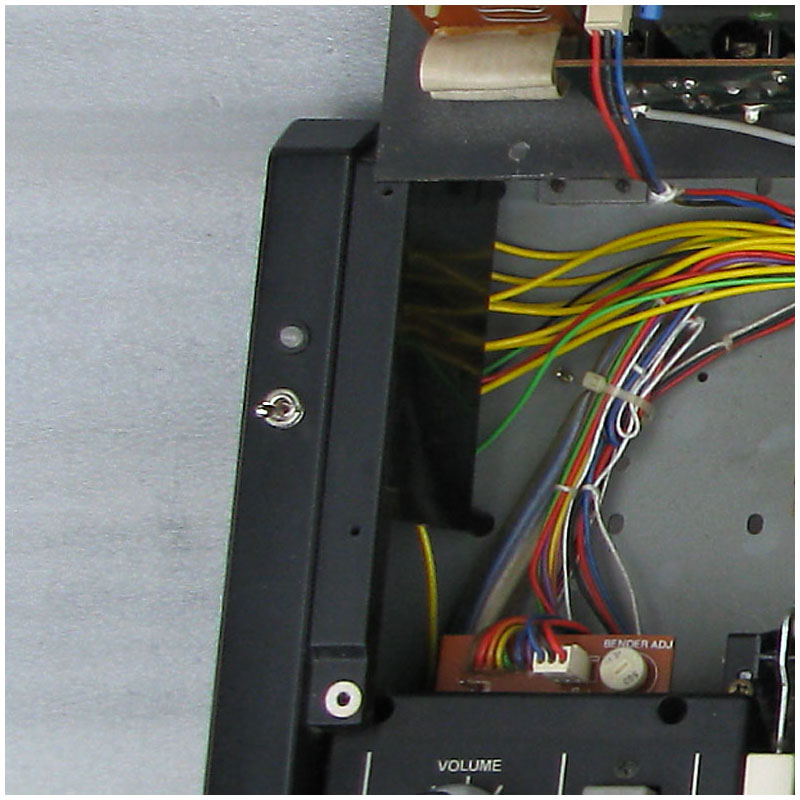

Installation of all MIDI interface parts into the instrument is somewhat more complicated but no problem should occur if all instructions indicated in the installation manual are kept. Please note that a complete beginner should not carry out the installation. At least basic manual dexterity and knowledge of soldering are required.

It is recommended to adjust the Roland instrument according to instructions in service manual of the instrument before the interface installation. This ensures trouble-free adaptation and usage of the interface.

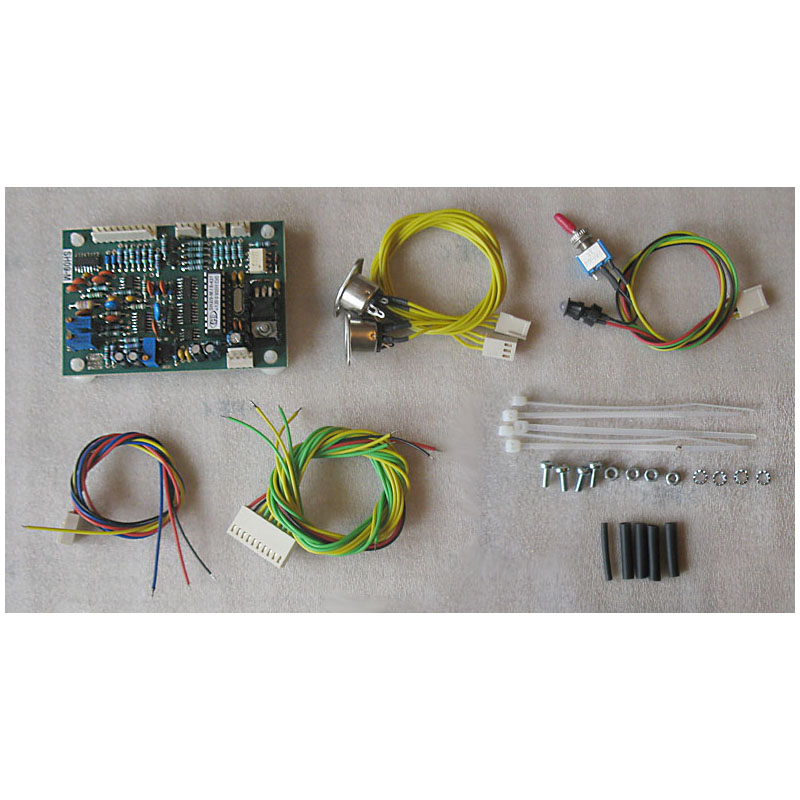

The SH2-M MIDI kit package contains all necessary parts (boards, cables, coupling elements, etc.) incl. owner’s and installation manuals in printed form.

Block diagram:

roland-sh2-midi-interface


Documents & SW Support |

See list of documents and support software available for download.

Note that Owner’s Manual and Installation Manual in printed form are included in the product delivery.


FAQ & Troubleshooting |

Problem: Solution:

After installation, the device doesn’t receive MIDI data and indication LED lights continuously.

Did you remove jumper from the interface board after adjustment as described in installation manual? If not, the interface stays in testing mode and it doesn’t accept MIDI commands!


Additional information

Weight 0.4 kg
Dimensions 90 × 60 mm
Model

8-437.2

Version

2.0
