Description
Main Features | Installation | Documents & SW Support
Main Features |
- The interface works in one direction only – it only receives MIDI data. Instrument’s keyboard, knobs, sliders and switches are not transmitted as a MIDI data.
- Controls the Jupiter’s keyboard (VCOs) and arpeggiator clock from MIDI. The instrument’s tone parameters (control elements on panel) are not MIDI controllable.
- The instrument’s keyboard is controlled manually and by MIDI Note On/Off commands simultaneously (in parallel manner).
- Easy user control of the interface parameters via MIDI CCs (as well as SysEx for experts):
» 49 MIDI Notes (4 octaves) range
» Transpose function (over whole range of MIDI Notes)
» Four modes of MIDI Notes priority can be chosen
» The instrument’s DCOs can be detuned by MIDI Pitch Bend (in semitone steps only) in range 0 to ±24 semitones
» The instrument’s arpeggiator can be synchronized with MIDI Clock
» Hold pedal – CC #64 (works with MIDI Notes)
» User selectable MIDI Channel for communication - Internal memory to store the interface user settings (the instrument’s tone parameters cannot be stored).
- Original features of the instrument are not changed and the instrument can be used the same way as before the interface installation.
- Very easy installation without the instrument circuits modification.
The interface recognizes MIDI commands:
- Note On/Off
- Pitch Bend
- Standard CCs (Hold, ASO, ANO, RAC)
- Own CCs (# 16-19)
- Common MIDI Synchronization – MIDI Clock
- Common System Reset
- System Exclusive Messages
Installation |

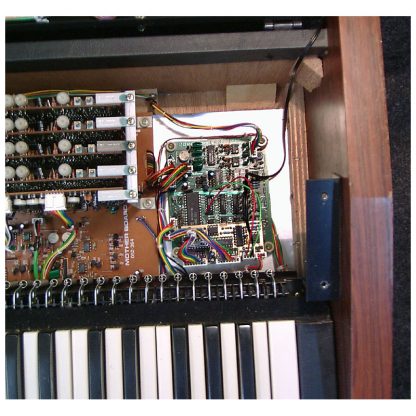

Installation of all MIDI interface parts into the instrument is very easy and no problem should occur if all instructions indicated in the installation manual are kept. Please note that a complete beginner should not carry out the installation. At least basic manual dexterity and knowledge of soldering are required.

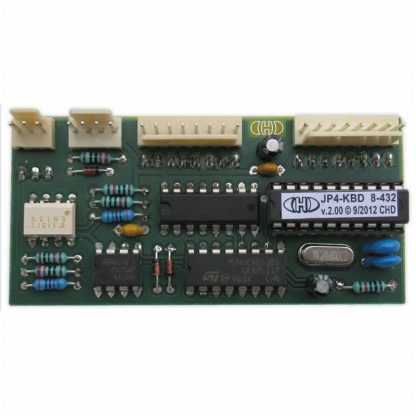

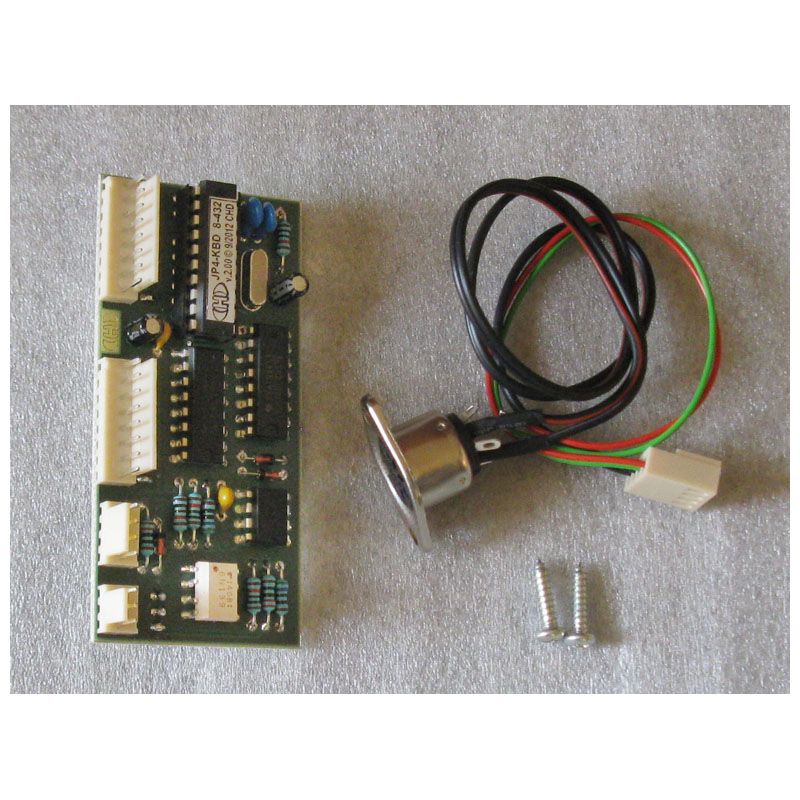

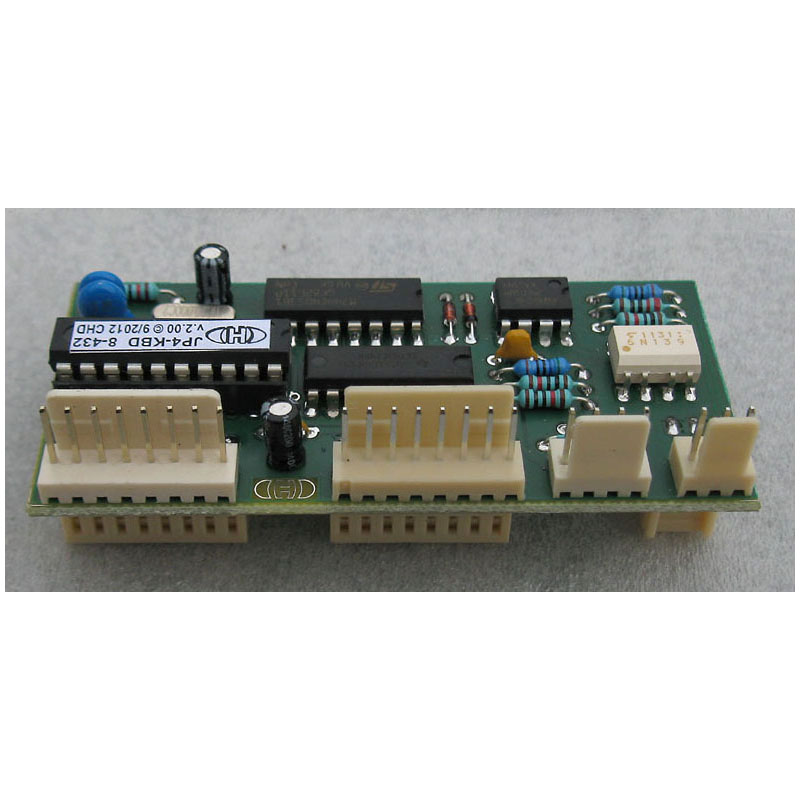

The JP4-KBD MIDI kit package contains all necessary parts (board, cables, coupling elements, etc.) incl. owner’s and installation manuals in printed form.
Block diagram:
Documents & SW Support |
See list of documents and support software available for download.
Note that Owner’s Manual and Installation Manual in printed form are included in the product delivery.
