EDRM-M: EMU Drumulator MIDI Interface

79,00

EDRM-M is MIDI kit for EMU Drumulator drum machine. It controls individual drum sound generators and sequencer of the instrument.

SKU: EDRM-M Category:

Description

Main Features | Demo | Installation | Documents & SW Support


Main Features |

  • The interface works in one direction only – it only receives MIDI data. Instrument’s knobs, sliders and buttons are not transmitted as a MIDI data.
  • Controls the EMU’s sound generators and sequencer from MIDI. The instrument’s sound parameters (control elements on panel) are not MIDI controllable.
  • The interface works with versions 1 and 2 of the instrument’s operational system so it is not necessary to change program EPROM on the instrument’s board. Due this fact, all eventually installed expanders of sound of drum instruments that are using own program EPROM (Amptown etc.) are still fully functional.
  • Internal memory to store the interface user settings (the instrument’s sound parameters cannot be stored).
  • Easy user control of the interface parameters via MIDI CCs (as well as SysEx for experts).
  • Original features of the instrument are not changed and the instrument can be used the same way as before the interface installation.
  • Very easy installation without the instrument circuits modification.

The interface operates in one of these three working modes:

Normal

  • The interface is switched off
  • EMU Drumulator instrument works the same way as before the interface installation

Clock

  • Internal instrument’s tempo generator is switched off.
  • Tempo of instrument’s sequencer is synchronized with MIDI clock.
  • Run of the instrument’s sequencer can be controlled with MIDI Start/Continue/Stop and with the Run/Stop button on instrument panel simultaneously.

Note

  • Internal instrument’s sequencer is switched off.
  • Instrument’s drum sound generators are launched by MIDI Notes.
  • Dynamics of sound generators is driven by Velocity of the MIDI Notes.
  • User programmable map of drum instruments including dynamics of particular instruments.
  • Possibility of volume control with MIDI CCs Volume and Expression.
  • User selectable MIDI Channel for communication

The interface recognizes MIDI commands:

  • Note On (inc. Velocity)
  • Standard CCs (Volume, Expression)
  • Own CCs (# 16, 17, 119)
  • Common MIDI Synchronization (Clock, Start, Continue, Stop)
  • System Exclusive Messages

Demo |

Example of drum sounds with velocity usage (in Note mode):


Installation |

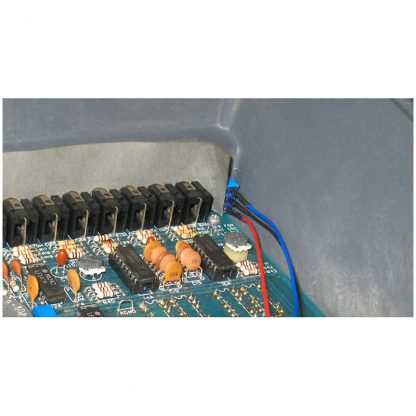

Installation of all MIDI interface parts into the instrument is very easy and no problem should occur if all instructions indicated in the installation manual are kept. Please note that a complete beginner should not carry out the installation. At least basic manual dexterity and knowledge of soldering are required.

The EDRM-M MIDI kit package contains all necessary parts (board, cables, coupling elements, etc.) incl. owner’s and installation manuals in printed form.

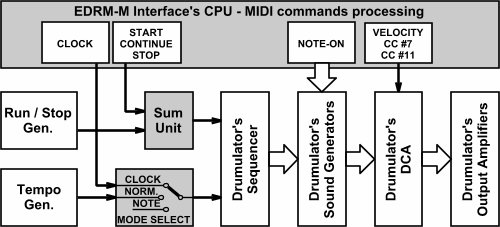

Block diagram:

emu-drumulator-midi-interface


Documents & SW Support |

See list of documents and support software available for download.

Note that Owner’s Manual and Installation Manual in printed form are included in the product delivery.


Additional information

Weight 0.25 kg
Dimensions 96 × 30 mm
Model

8-450

Version

1.1
